The RadioMaster Pocket is a small, lightweight radio that packs a big punch. It is available in two versions, ExpressLRS and MPM CC2500, and both versions come preinstalled with EdgeTX firmware. The Pocket is also equipped with removable stick ends and a foldable antenna, making it easy to transport and store. It is compatible with 18650 batteries, which provide long battery life for hours of fun.

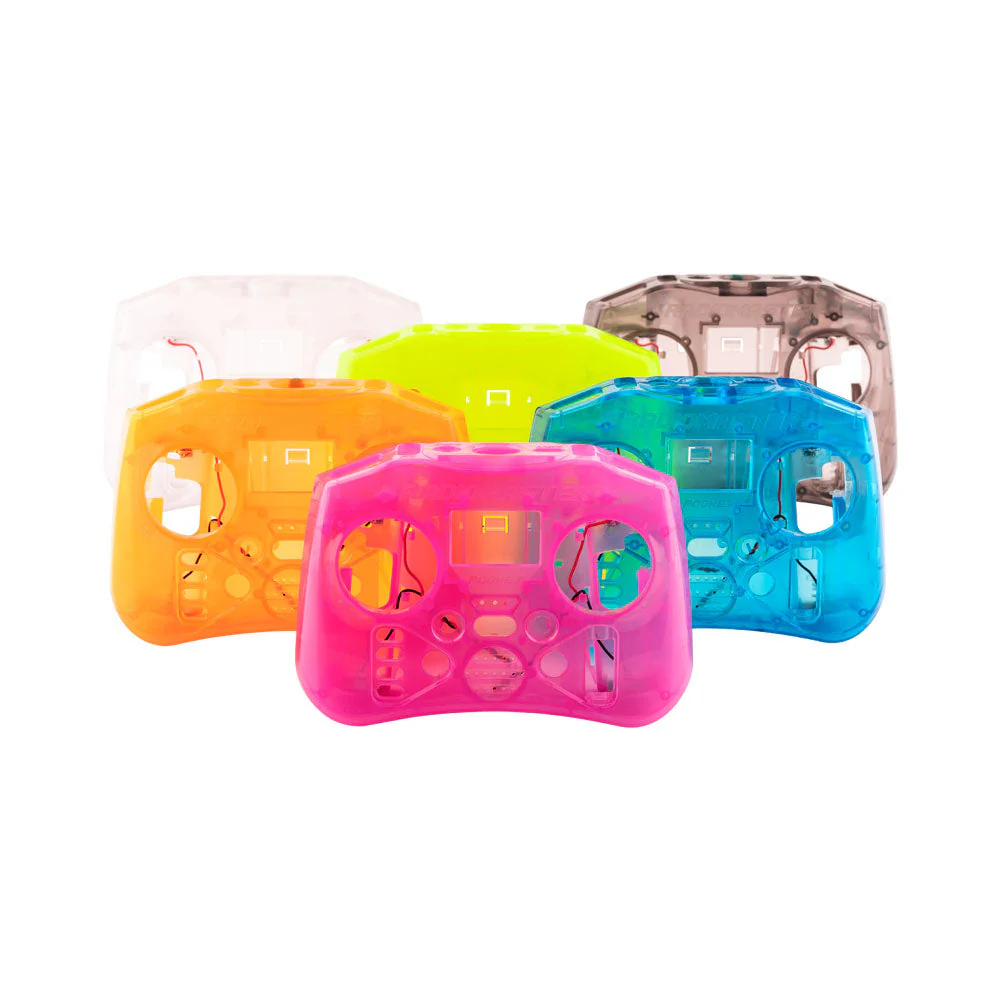

In addition to the classic charcoal and transparent case colors, we have a range of optional color cases available in a selection of vibrant colors, including blue, pink, green, and orange. This allows you to personalize the radio to match your own unique style.

The RadioMaster Pocket is a great choice for anyone looking for a small, lightweight radio with all the powerful features you have come to expect.

Pocket Radio Controller (M2)

Features

Available in ExpressLRS Backpack and MPM CC2500 versions
Preinstalled with EdgeTX firmware
18650 Batteries, all the power you need for hours of fun (Batteries not included)
Portable and lightweight design with removable stick ends and foldable antenna
Features hall effect gimbals as standard for smooth centering & precise response
Built-in LED lights help visualize your switch positions (SA & SD)
Backlit LCD Screen offering a perfect balance of size and functionality
Trim buttons for easy channel trimming
External Module Bay compatible with RadioMaster Nano-size modules and TBS Nano Crossfire/Nano Tracer
2 Stylish Colors of Charcoal & Transparent version and optional case colors in Blue, Pink, Green, and Orange to suit your style

Specifications

Item: Pocket Radio
Physical dimensions: 156.6*65.1*125.3mm (Folded size) /156.6*73.1*154.8mm (Unfold size）
Weight: 288 grams
Operating frequency: 2.400GHz-2.480GHz
Internal RF Options: CC2500 multi-protocol / ELRS 2.4GHz
Supported protocols: Module dependent
Operational voltage: 6.6-8.4v DC
Operating system: EdgeTX
Control channels: Maximum 16 (Receiver dependent)
Display: 128*64 Monochrome LCD
Battery: 2pcs 18650 batteries (Not included)
Charging: Built in USB-C QC3 Charging
Upgradable Firmware: Via USB or the included SD card
Gimbal: X5 Hall-effect, quad ball-bearing, nano gimbals (AG01 Nano compatible)
Module bay: Nano size (Compatible with RadioMaster Nano-size modules, TBS Nano Crossfire / Nano Tracer )

Available with ExpressLRS and CC2500 Version

CC2500 (standard) Version supports all CC2500 protocols
ELRS (standard) is pre-installed with ExpressLRS ISM FW (Max power is hardware dependent)

About LBT version

CC2500 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT & HoTT LBT
ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)

Pocket Radio Controller (M2)

Gimbal Adjustment

A L-R
To switch M1/M2. Turn clockwise to disable self-centering (Throttle). Turn counterclockwise to enable self-centering (Elevator).
B T
To adjust the throttle stick tension. Turn clockwise to increase stick tension. Turn counterclockwise to decrease stick tension.
C UP-DOWN
Turn clockwise to increase vertical stick tension.
Turn counterclockwise to decrease stick tension.
D LEFT-RIGHT
Turn clockwise to increase horizontal stick tension.
Turn counterclockwise to decrease stick tension.

Pocket Radio Gimbal Adjustment

Dimensions

Pocket Dimensions

Radio Overview

Pocket Radio Controller Overview [Pre-order]Pocket Radio Controller (M2)

Download

Pocket Radio User Manual

How to install AG01 Nano Gimbals

Optional Accessories

18650 Batteries

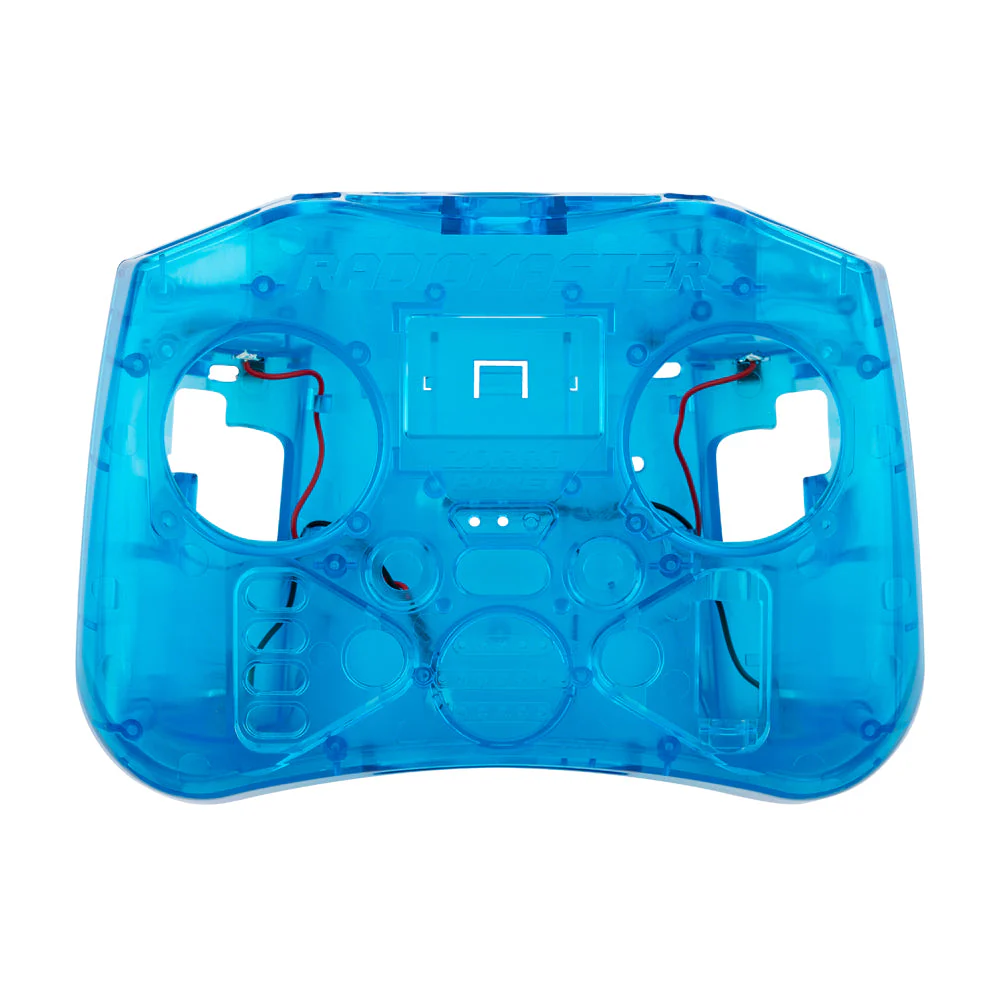

Optional cases in Blue, Pink, Green, Orange, Charcoal and Transparent
Ranger Nano Module
RM 4in1 Module

Package Including

1 * Pocket Radio
1 * Custom Carry Pouch
1 * USB-C Cable
1 * Screen Protector
1 * Sticker
4 * Low Tension Springs
1 * Manual

Pocket Radio Controller (M2)v

A special thanks and credit to the hard work and dedication of the Open-source projects who make these products possible. We wish to thank them for their support in the development and testing of the Pocket radio along with their ongoing support to the community who use our products. To support these projects and learn more visit the links below.

https://edgetx.org/

www.expresslrs.org

www.multi-module.org

Pocket is now compatible with mLRS!

The mLRS project offers an open-source, high-performance radio system based on LoRa technology, operating at 2.4 GHz, 915/868 MHz, and 433 MHz/70 cm, designed to deliver a secure, reliable, and robust link under any conditions.
mLRS is designed with MAVLink and MSP optimization in mind, while also providing a transparent serial link, making it suitable for a wide range of applications. Its design ensures the strongest possible signal integrity while maintaining a relatively high data rate, balancing performance and reliability without compromise.

Find out more about mLRS here
Visit the online mLRS Web Flasher here
