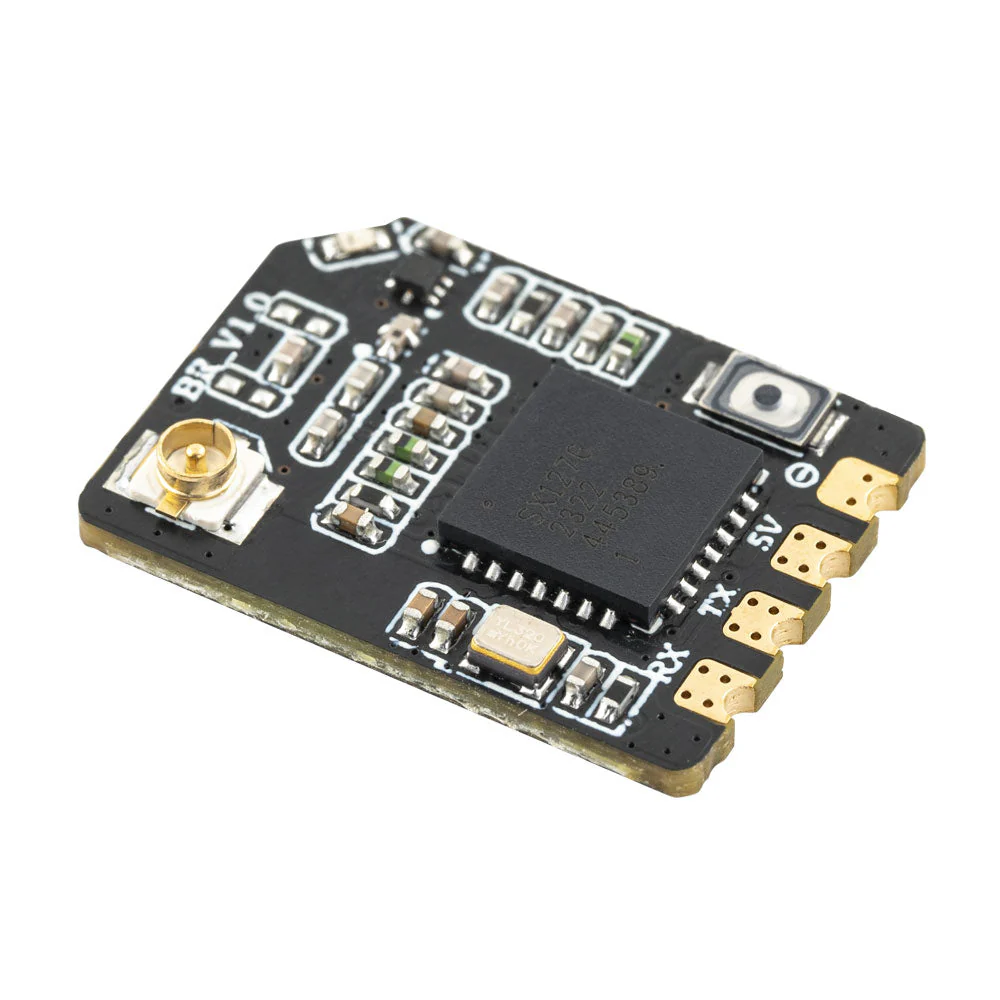

The RadioMaster Bandit BR1 Expresslrs Receiver features a built-in TCXO (temperature-compensated crystal oscillator) which ensures reliable, stable, and accurate signal reception for superior performance in demanding environments. Utilizing 0402 components, the BR1 ExpressLRS receiver also features superior resistance to vibration.

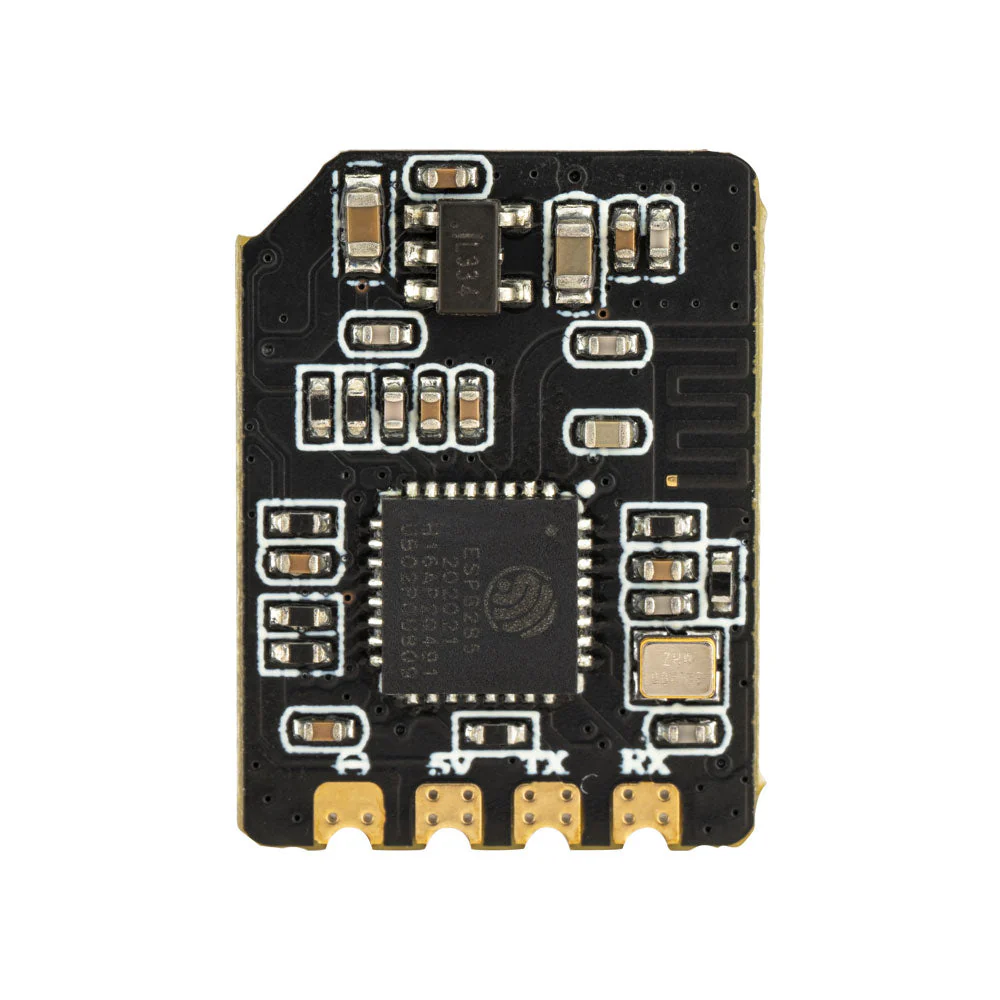

The Bandit BR1 ExpressLRS Receiver features an ESP8285 MCU and the SX1276 RF chip, known for low latency, high sensitivity, and excellent RF performance. The included high-sensitivity T Antenna is lightweight and easy to install, allowing flexible placement based on your needs.

Thanks to its low-latency, high-refresh-rate RF architecture, the Bandit BR1 ExpressLRS Receiver is perfect for applications that require precise control, quick response, and reliable link quality.

Features

• Built-in TCXO oscillator
• Utilizing 0402 components, superior resistance to vibration
• Lightweight and compact design
• High-sensitivity 915/868MHz T Antenna included

Specifications

• Item: Bandit BR1 Expresslrs Receiver
• Regulatory Domain: FCC915
• MCU: ESP8285
• RF Chip: SEMTECH SX1276
• Telemetry RF Power: 50mw/17dbm
• Antenna: 915/868MHz T Antenna & Y Antenna
• Antenna Interface: IPEX1
• Bus Interface: CRSF
• Working Voltage: DC 5.0V
• Dimension: 18*13.8mm
• Weight: 2.9g (with T antenna)

Dimensions
