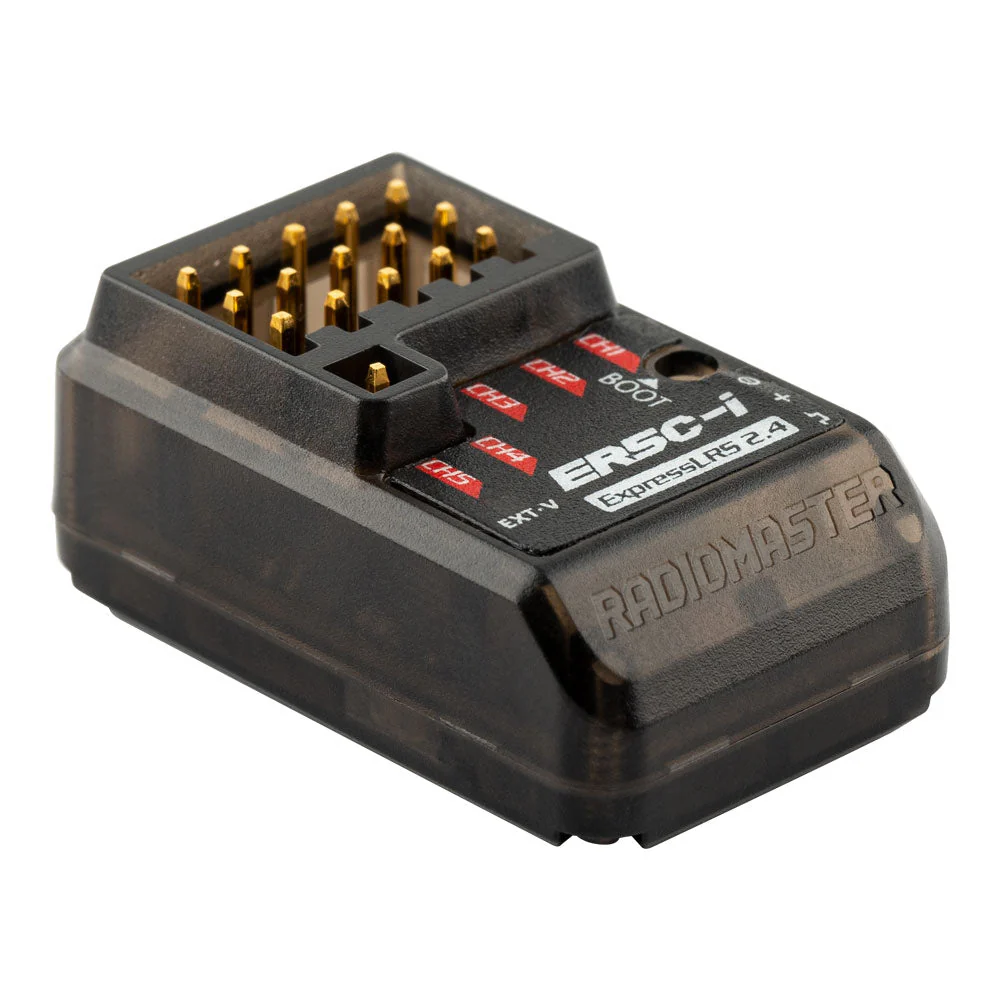

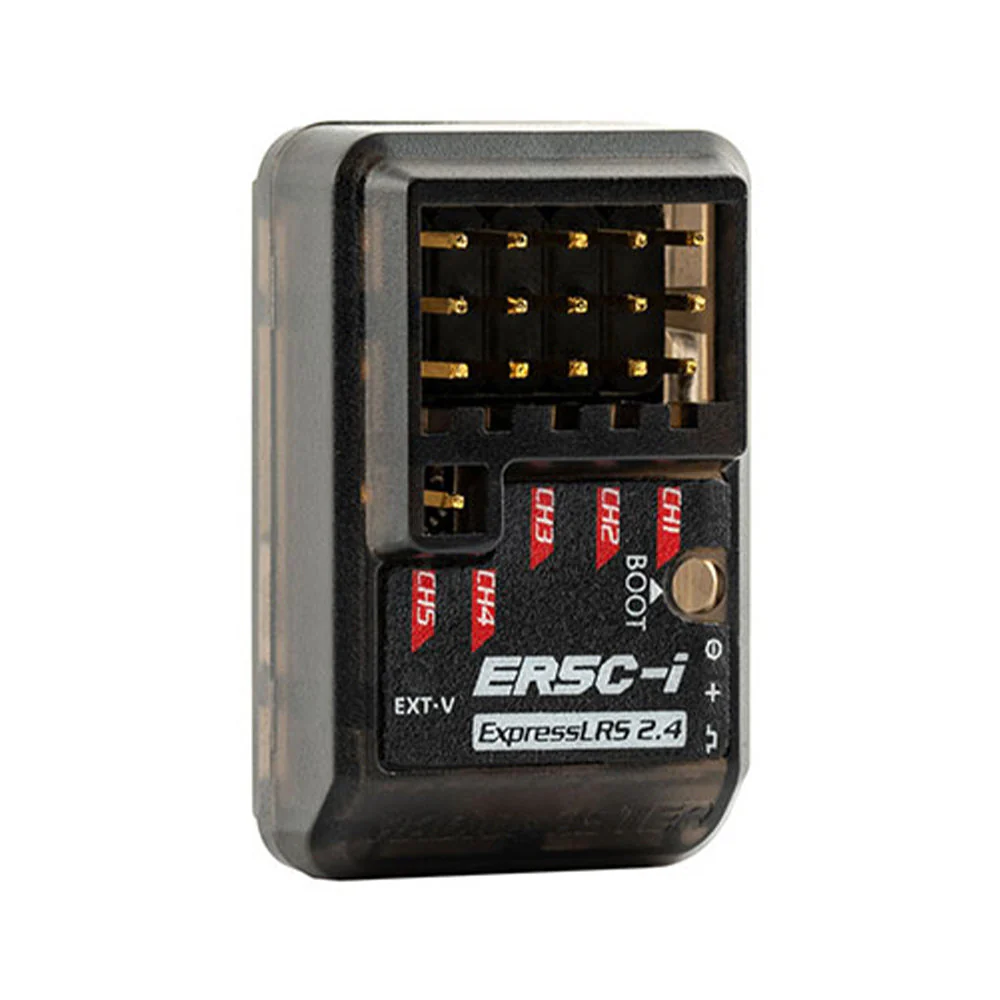

ER5C-i 2.4GHz ELRS PWM Receiver
The RadioMaster ER5C-i receiver is built on the innovative ExpressLRS protocol. It provides high performance, dependable signal, versatile configuration, and quick response time, offering a new experience for your projects and applications.
The ER5C-i ELRS receiver can drive up to 5 servos and has built-in receiver voltage telemetry and battery telemetry with the ability to automatically detect which voltage input to use. The ER5C-i features a built-in high-sensitivity ceramic antenna, it is designed for all types of surface models and provides a clean install without antenna wires to worry about.
Features
- Built-in high-sensitivity ceramic antenna
- Based on the Revolutionary ExpressLRS System
- High performance, high reliability, flexible configuration, low latency, and strong link quality
- Supports 5 PWM Channels
- Automatically detects voltage telemetry of external battery voltage or receiver battery / ESC BEC voltage
- Optimized ground up PCB design
- Supports Wi-Fi updates and WEBUI configuration
- Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any environment
- Designed for all types of surface models
- Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS
Specifications
- Item: ER5C-i 2.4GHz ELRS PWM Receiver
- Power supply: DC 4.5 - 8.4V
- Antenna type: Built-in high-sensitivity ceramic antenna
- Wireless protocol: ExpressLRS 3.3.0 pre-installed
- Output channel: 5CH PWM
- Telemetry power: 10mW
- Battery voltage detection range: DC 4.0 - 35V
- Weight: 5.0 grams
- Dimensions: 30.0*18.5*13.0 mm
- Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER5C-i
Size
Associated Products
- MT12 Surface Radio Controller
- ER SERIES ELRS PWM RECEIVERS
Download
Package Includes
- 1 * ER5C-i 2.4GHz ELRS PWM Receiver
- 1 * Voltage telemetry wire
- 1 * User Card
ER5C-i Receiver is installed with ExpressLRS as standard.
ExpressLRS is an open-source, high-performance radio control link that delivers exceptional range and low-latency communication using advanced LoRa technology. It's highly customizable and perfect for RC enthusiasts looking for reliability and efficiency.
Pair your ExpressLRS with Radiomaster's top-tier transmitters and receivers. Radiomaster products are designed to maximize the benefits of ExpressLRS, offering state-of-the-art performance for your RC adventures. Upgrade your RC experience with the unbeatable combination of ExpressLRS and Radiomaster—engineered for excellence and tailored for you.
Find out more about ExpressLRS here
