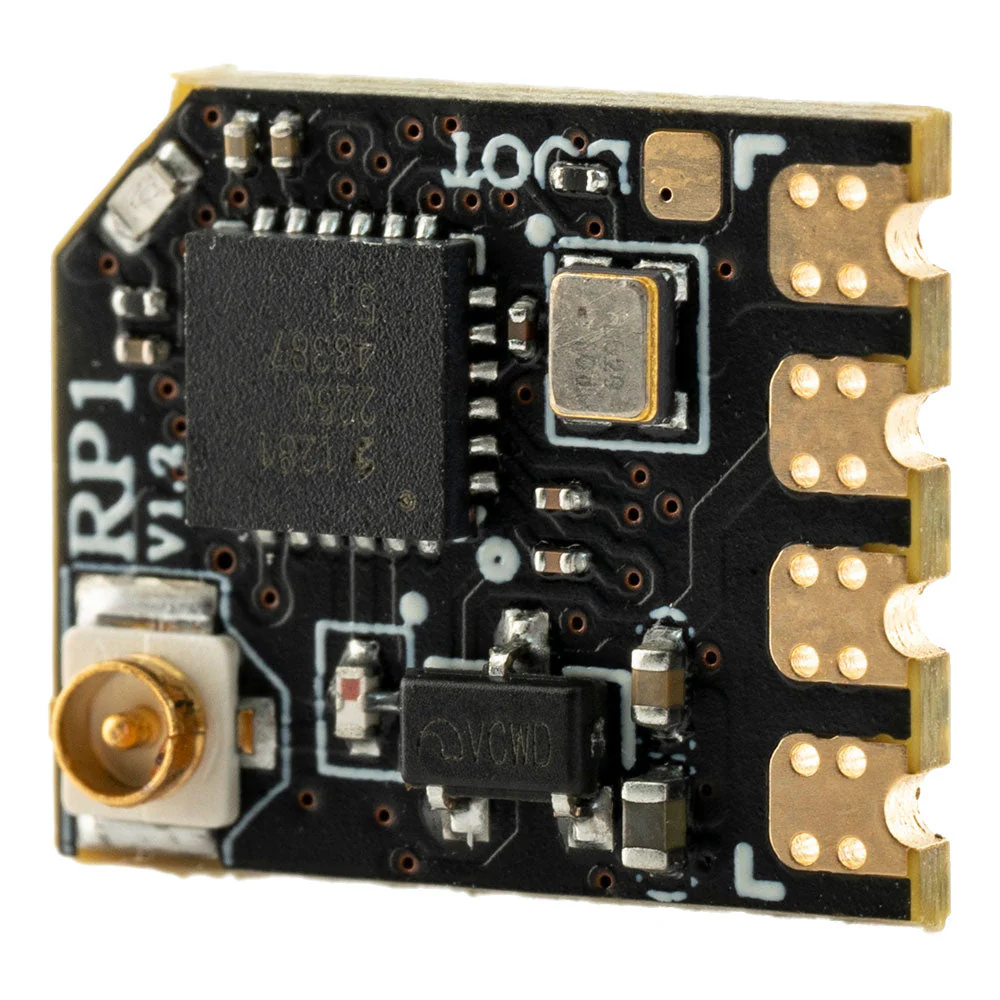

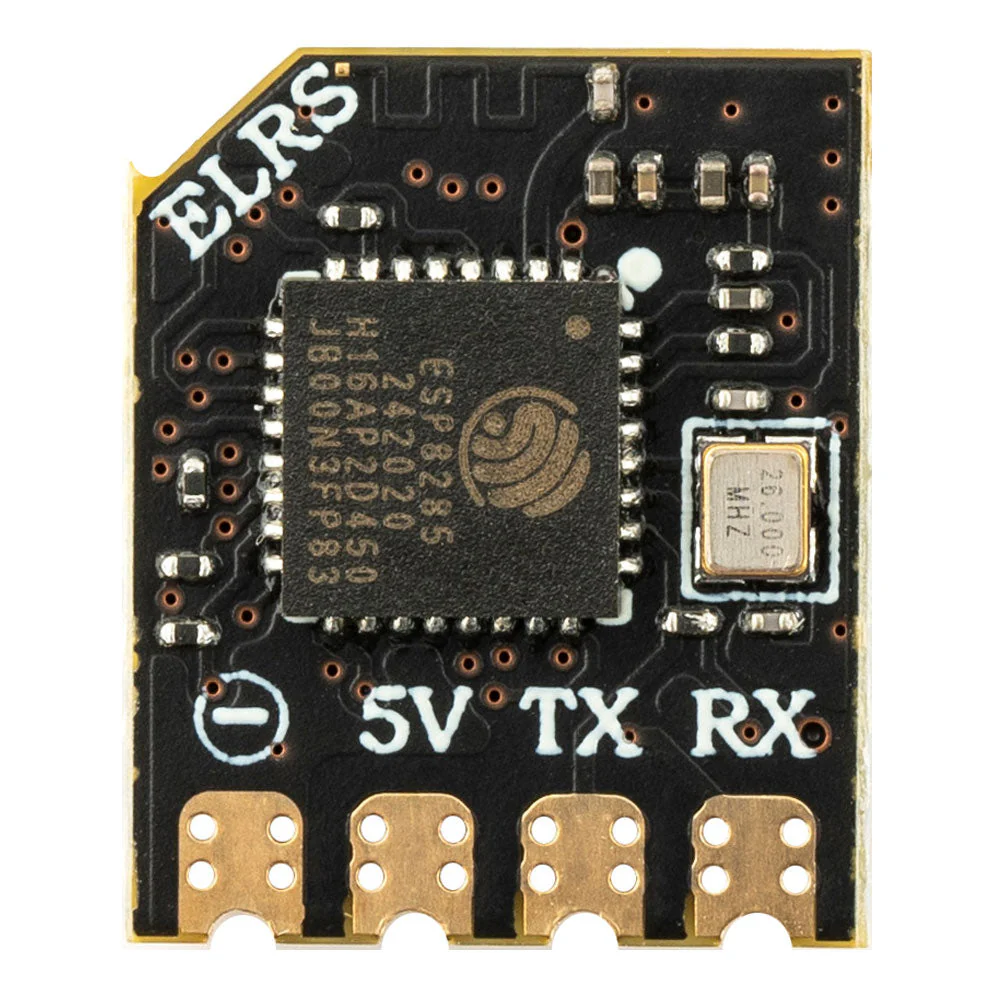

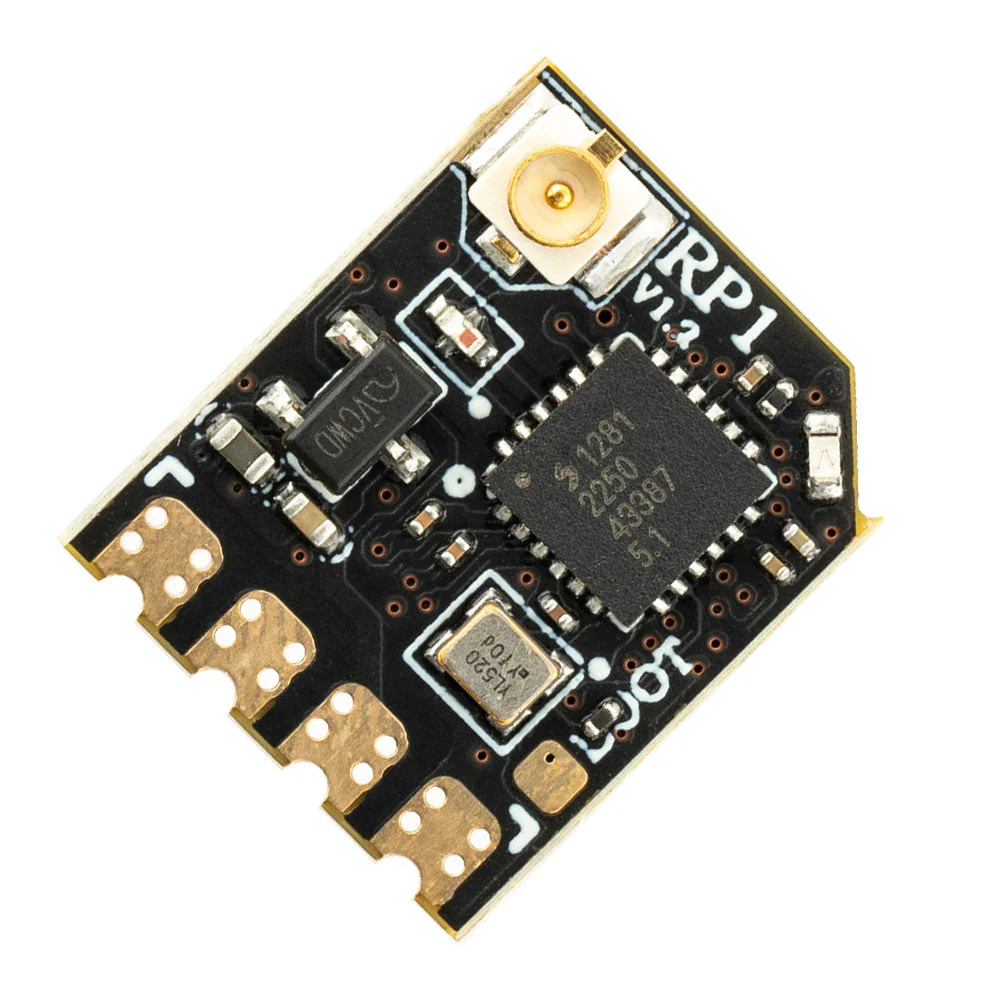

RP1 V2 ExpressLRS 2.4ghz Nano Receiver
The RadioMaster RP series receivers are built-in a TCXO (temperature-compensated crystal oscillator) now, which ensures reliable, stable, and accurate signal reception, allowing for superior performance in demanding environments and enhancing the flight experience.
The RP1 and RP2 2.4GHz ELRS nano series receivers are open-source receivers based on ExpressLRS. The Nano receivers, first developed by Jye Smith from the ExpressLRS development team, feature ESP8285 MCU and SX1280 RF chip. The RP1 has a UFL antenna socket for full-range antenna use. The RP2 has a built-in ceramic antenna which is super light and small in size and ideal for racing.
The RP1 and RP2 feature WIFI built in so you can upgrade firmware by WIFI and configure the Receiver via the built-in WebUI with your PC or mobile phone.
Thanks to the low-latency, high-refresh-rate RF module, the RP1 and RP2 deliver ultra-responsive performance. Their ultra-light, nano-sized design makes them suitable for a wide range of applications, fitting just about anywhere!
Visit https://www.expresslrs.org/ to learn more.
Features
- Improved PCB design is better for heat dissipation.
- Upgraded rigid antenna with greater durability and performance.
- LED on the top side of PCB.
- Solder pads are improved and easier to solder to.
- Built-in a TCXO (temperature compensated crystal oscillator)
- Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS
Specification
- Item: RP1 Nano ExpressLRS 2.4ghz Receiver
- Type: ISM
- MCU: EPS8285
- RF Chip: SEMTECH SX1281
- Telemetry RF power: 10mW
- Antenna: 65mm 2.4ghz T Antenna
- Frequency Range: 2.404 - 2.479 Ghz
- Maximum receive refresh rate: 500Hz / F1000Hz
- Minimum receiver refresh rate: 25Hz
- Working voltage: 5v
- Weight: 2.2g (Including antenna)
- Dimension: 13mm*11mm*3mm
- Firmware Version: ExpressLRS v2.4 pre-installed
- FW Target: RadioMaster RP1/2 2400 RX
- Bus interface: CRSF
TCXO (temperature compensated crystal oscillator)
The TCXO ensures high stability and accuracy in frequency control, compensating for temperature variations. This results in consistent and reliable signal reception, even in extreme temperature conditions. It also reduces frequency drift over time, providing long-term frequency stability and preventing signal degradation. Click to learn more about the TCXO.
Size
Related Products
- UFL 2.4Ghz T Antenna 65mm/95mm
- RP1 ExpressLRS 2.4ghz Nano Receiver
- RP2 ExpressLRS 2.4ghz Nano Receiver
- TX12 Mark II Radio
- TX16 Mark II Radio
- Zorro Radio
Package Includes
- 1 * RP1 ExpressLRS 2.4ghz Nano Receiver
- 1 * 65mm UFL 2.4Ghz T Antenna
- 1 * User Manual
- 1 * CRSF wire
RP1 Receiver is installed with ExpressLRS as standard.
ExpressLRS is an open-source, high-performance radio control link that delivers exceptional range and low-latency communication using advanced LoRa technology. It's highly customizable and perfect for RC enthusiasts looking for reliability and efficiency.
Pair your ExpressLRS with Radiomaster's top-tier transmitters and receivers. Radiomaster products are designed to maximize the benefits of ExpressLRS, offering state-of-the-art performance for your RC adventures. Upgrade your RC experience with the unbeatable combination of ExpressLRS and Radiomaster—engineered for excellence and tailored for you.
Find out more about ExpressLRS here
The RadioMaster RP series receivers are built-in a TCXO (temperature-compensated crystal oscillator) now, which ensures reliable, stable, and accurate signal reception, allowing for superior performance in demanding environments and enhancing the flight experience.
The RP1 and RP2 2.4GHz ELRS nano series receivers are open-source receivers based on ExpressLRS. The Nano receivers, first developed by Jye Smith from the ExpressLRS development team, feature ESP8285 MCU and SX1280 RF chip. The RP1 has a UFL antenna socket for full-range antenna use. The RP2 has a built-in ceramic antenna which is super light and small in size and ideal for racing.
The RP1 and RP2 feature WIFI built in so you can upgrade firmware by WIFI and configure the Receiver via the built-in WebUI with your PC or mobile phone.
Thanks to the low-latency, high-refresh-rate RF module, the RP1 and RP2 deliver ultra-responsive performance. Their ultra-light, nano-sized design makes them suitable for a wide range of applications, fitting just about anywhere!
Visit https://www.expresslrs.org/ to learn more.
Features
- Improved PCB design is better for heat dissipation.
- Upgraded rigid antenna with greater durability and performance.
- LED on the top side of PCB.
- Solder pads are improved and easier to solder to.
- Built-in a TCXO (temperature compensated crystal oscillator)
- Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS
Specification
- Item: RP1 Nano ExpressLRS 2.4ghz Receiver
- Type: ISM
- MCU: EPS8285
- RF Chip: SEMTECH SX1281
- Telemetry RF power: 10mW
- Antenna: 65mm 2.4ghz T Antenna
- Frequency Range: 2.404 - 2.479 Ghz
- Maximum receive refresh rate: 500Hz / F1000Hz
- Minimum receiver refresh rate: 25Hz
- Working voltage: 5v
- Weight: 2.2g (Including antenna)
- Dimension: 13mm*11mm*3mm
- Firmware Version: ExpressLRS v2.4 pre-installed
- FW Target: RadioMaster RP1/2 2400 RX
- Bus interface: CRSF
TCXO (temperature compensated crystal oscillator)
The TCXO ensures high stability and accuracy in frequency control, compensating for temperature variations. This results in consistent and reliable signal reception, even in extreme temperature conditions. It also reduces frequency drift over time, providing long-term frequency stability and preventing signal degradation. Click to learn more about the TCXO.
Size
Related Products
- UFL 2.4Ghz T Antenna 65mm/95mm
- RP1 ExpressLRS 2.4ghz Nano Receiver
- RP2 ExpressLRS 2.4ghz Nano Receiver
- TX12 Mark II Radio
- TX16 Mark II Radio
- Zorro Radio
Package Includes
- 1 * RP1 ExpressLRS 2.4ghz Nano Receiver
- 1 * 65mm UFL 2.4Ghz T Antenna
- 1 * User Manual
- 1 * CRSF wire
RP1 Receiver is installed with ExpressLRS as standard.
ExpressLRS is an open-source, high-performance radio control link that delivers exceptional range and low-latency communication using advanced LoRa technology. It's highly customizable and perfect for RC enthusiasts looking for reliability and efficiency.
Pair your ExpressLRS with Radiomaster's top-tier transmitters and receivers. Radiomaster products are designed to maximize the benefits of ExpressLRS, offering state-of-the-art performance for your RC adventures. Upgrade your RC experience with the unbeatable combination of ExpressLRS and Radiomaster—engineered for excellence and tailored for you.
Find out more about ExpressLRS here
